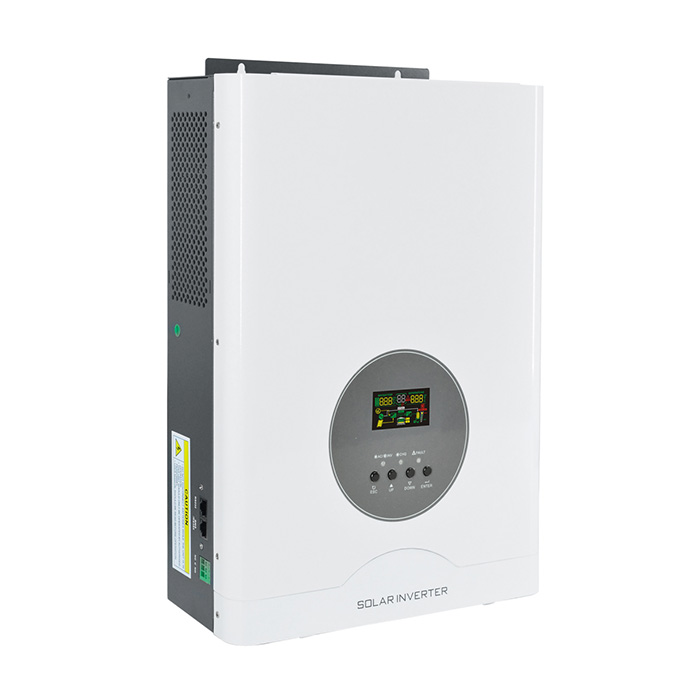

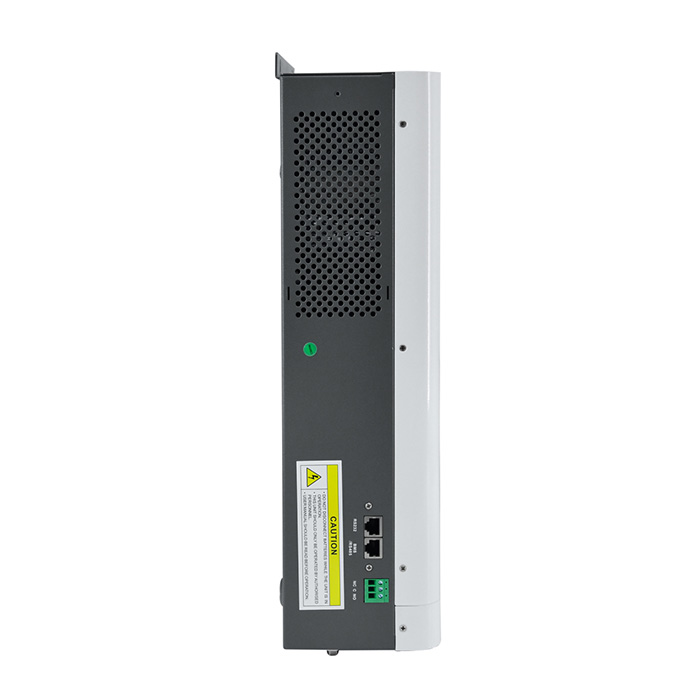

| Smart Inverter UD series |
Features：
Pure sine ware output
Optional MPPT/PWM solar charge controller 60A MPPT Efficiency max 98%
DC Start & Automatic Self-Diagnostic Function
High Efficiency Design & ”Power Saving Mode” to Conserve Energy Auto restart when Ac is recovering
Smart battery charger design for optimized battery performance
Selectable charging current based on applications AC input/DC input/Solar input optional priority
Auto Restart Voltage |
| Capacity(VA) | UD1000V | UD1500VA | UD2000VA | UD3000VA | UD3800VA | UD5000VA | UD6300VA | UD8000VA | UD10000VA | UD12500VA |
| Rated Power | 800W | 1200W | 1600W | 2400W | 3000W | 4000W | 5000W | 6400W | 8000W | 10000W |
| Voltage(DC) | 12V | 24V | 24V/48V | 48V | 24V/48V | 48V |

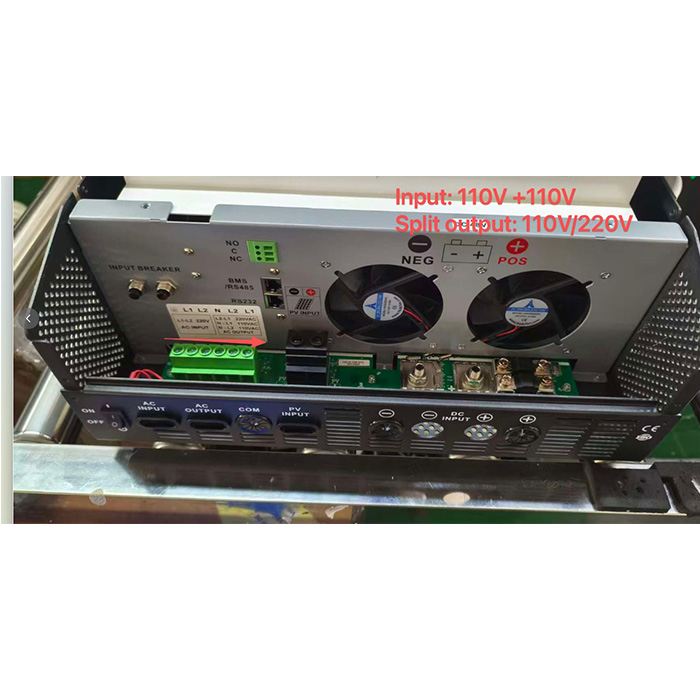

| Nominal Voltage | 110VAC/ 220VAC（110/220 split unit） |
| Voltage Range | 90-145VAC/ 154-265VAC ;185-264VAC ( selectable) |
| Frequency | 50-60HZ Auto sensing |
| Power Factor | 0.8 |
| Voltage | 220VAC |
| Frequency | 50/60HZ |
| Waveform | Pure Sine Wave |
| Transfer Time (AC to DC) | <8ms |
| Transfer Time (DC to AC) | <8ms |
| Output Voltage Regulation | 土10% |
| Bypass Mode | Yes |
| Saver Mode | Yes |
| Efficiency | >98% |

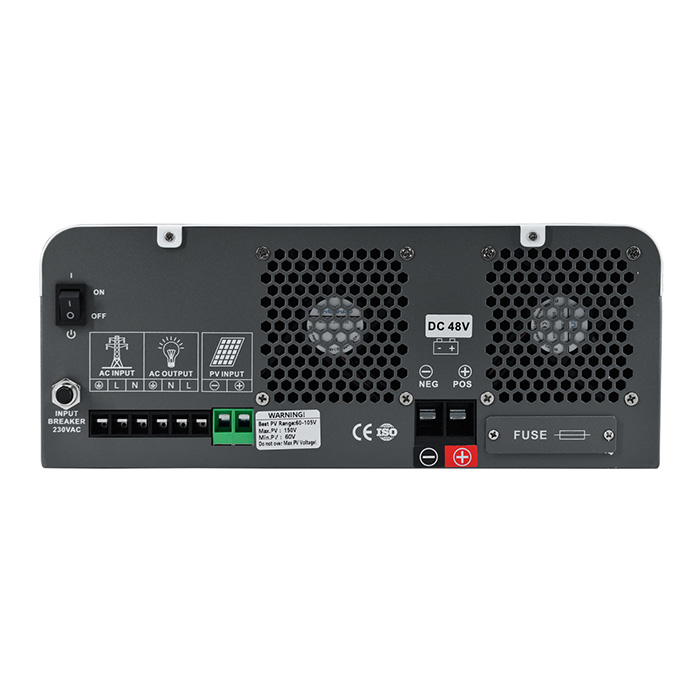

| Input Protection | Circuit Breaker |
| Output Protection | Circuit Breaker |
| Battery Type | VRLA / GEL /GEL DEEP CYCLE |
| Charging Current | 20A | 30A | 20A | 30A | 40A/22A | 28A | 35A/30A | 45A | 55A | 60A |
| Low Level disconnect (Selectable) | 10V- 11V | 20V -22V/40V-44V | 40V -42V |
| controller Voltage range | PWM:15VDC-33VDC | MPPT:36VDC-150VDC | MPPT:60VDC-150VDC |
| Maximum PV display open circuit voltage | PWM:38V | MPPT:150V |
| Maximum PV array power | 720W | 24V:1600W
48V:3200W | 6400W |
MPPT Maximum
PV display open circuit voltage | 150VDC |
| Maximum solar charge current | 60A |

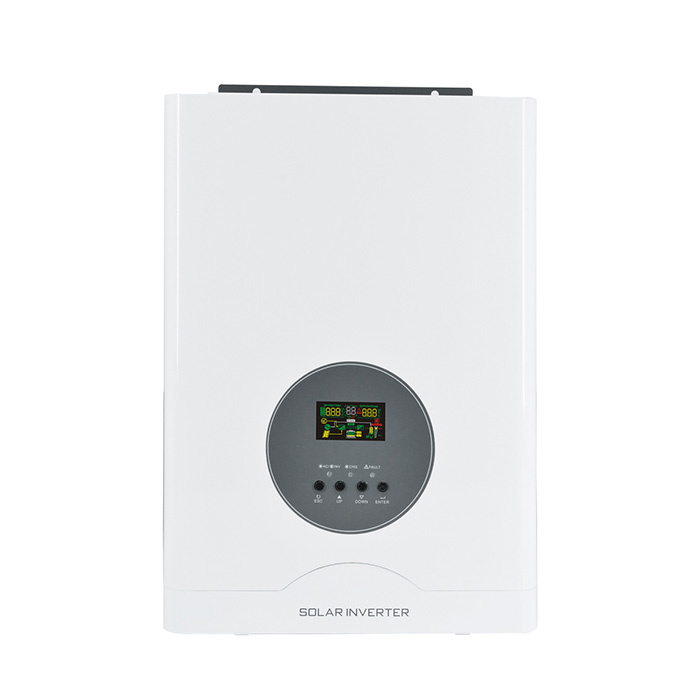

| LCD indicator status | AC input voltage/input frequency, PV voltage, PV current , Output Voltage/Frequency, Battery voltage, Load current etc. |
| LED indicator status | AC Line In:Green/Inverter:Red/Charging :Yellow/Alarm :Red |
| LOW battery alarm | Audible alarm-5 seconds beeping |
| Overload alarm | Audible alarm- continuous beeping |
| Fault | Audible alarm- continuous beeping |
| Temperature | 0-60℃ |
| Humidity | —10℃~90℃ Non condensing |
| Accoustic Noise(db) | >55dB |
